Detailinformationen |
|||
| Material: | Kupfer, Messing | Typ: | Drahtseilklemme |
|---|---|---|---|
| Farbe: | Nickel/Chrom/Schwarz/Weiß | Kabelkonstruktion: | 1*7,7*7,1*19,7*19 |
| Fadenlänge: | 10.00 mm | Kabeldurchmesser: | 0,8 mm bis 1,2 mm |
| Sichere Arbeitsbelastung: | 150,00 kg | Mini-Breibelastung: | 12,5 kg bis 500 kg |
| Größe (L*W*H): | 15*15*8,5 bis 42*42*22 | MOQ: | 100 PCs |
| Probenverfügbarkeit: | Probe zur Verfügung stellen | Anpassung: | Material, Farbe, Dimension |
| Vorlaufzeit: | 15 Tage | Versandmethoden: | Express, Meeresfracht, Agent |
| defekte Rate: | weniger als 0,2% | ||
| Hervorheben: | M12 Cable Looping Gripper,1*7 Steel Wire Rope,1*19 Looping Gripper |
||
Produkt-Beschreibung

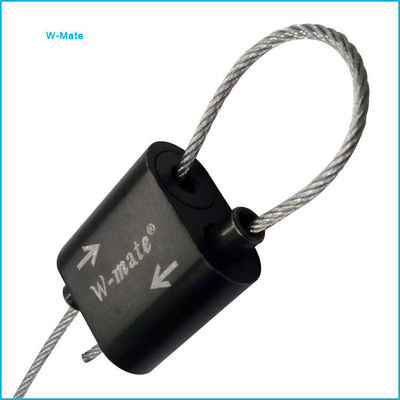

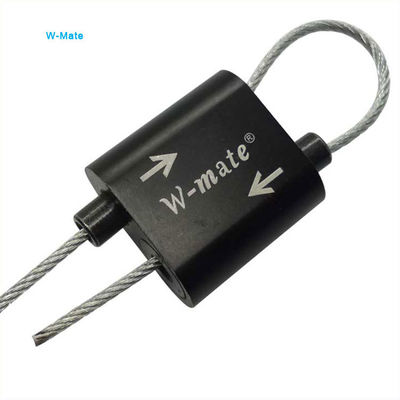

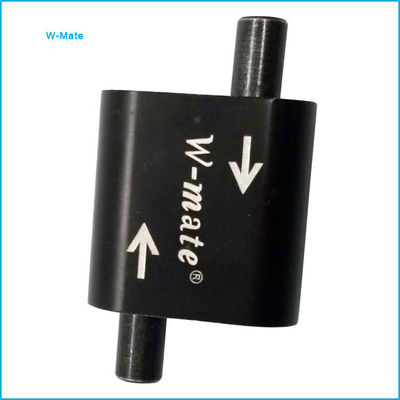

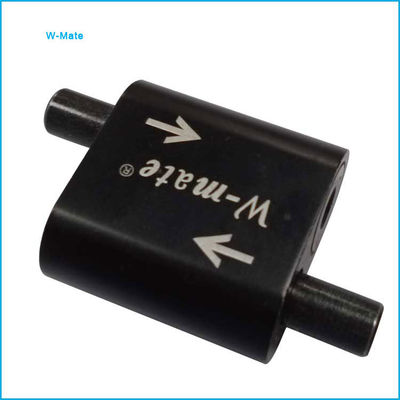

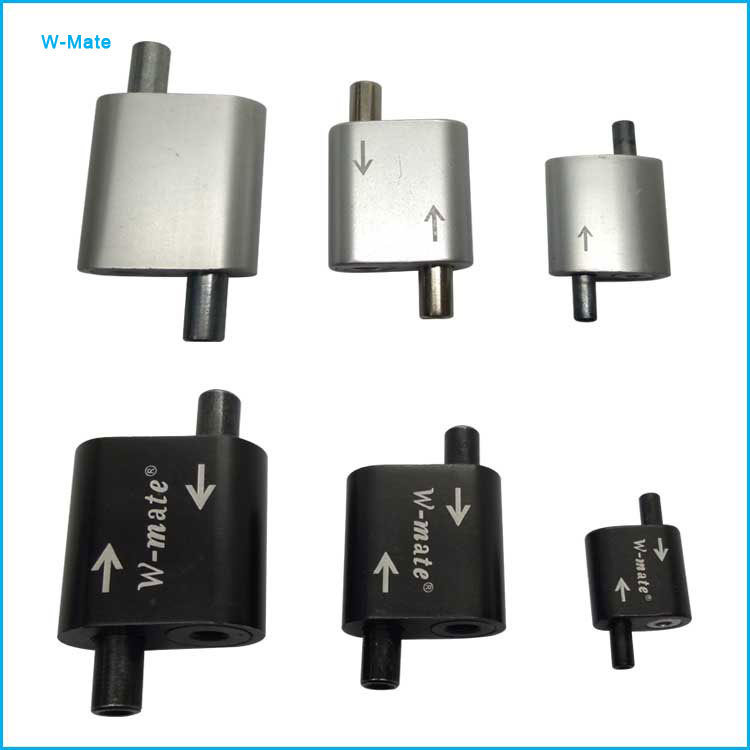

Black Loop Maker Self Gripping Adjustable M12 Double Sides Steel Wire Rope Cable Looping Gripper Aluminum
Technical Specifications
| Cable Diameter | Mini Breaking Load | Safe Work Load | Size (L*W*H) |
|---|---|---|---|
| φ0.8mm | 12.5kg | 2.5kg | 15*15*8.5 |
| φ1.0mm | 50kg | 10kg | |
| φ1.2mm | 80kg | 16kg | 20*18*10 |
| φ1.5mm | 130kg | 26kg | |
| φ1.8mm | 180kg | 36kg | 25*25*12 |
| φ2.0mm | 200kg | 40kg | |
| φ2.5mm | 300kg | 60kg | 30*30*15 |
| φ3.0mm | 400kg | 80kg | |
| φ4.0mm | 450kg | 90kg | 42*42*22 |
| φ5.0mm | 500kg | 100kg |
Frequently Asked Questions
Why choose our products?
- Excellent R&D capability with advanced processing and testing equipment (40+ machines including cutting, welding, and casting machines)
- Comprehensive inspection equipment
- Customizable specifications including material, color, and dimensions
- Professional QA team
- Superior after-sales services
How do we design ceiling suspension cables/kits?
We consider multiple factors including workload, safety, abrasion resistance, environment, cycle life, flexibility, and cost when designing ceiling suspension cables/kits based on your specific application requirements.
Quality and cost control
We implement four-stage inspections before and after production, with complete QC inspection processes and solutions to ensure quality while controlling costs.
How to place an order?
Please provide complete specifications including: Material, Diameter, Construction, Coating, Length, Packing, Quantity, and any special Remarks.
Production lead time
Standard lead time is 15 days, depending on order size. We can expedite urgent orders upon request.
Shipping methods and timelines
- Express (DHL, UPS, TNT, FEDEX): 3-5 days delivery
- Sea Freight: We will provide quotes based on your destination port
- Client-designated agent: Provide contact details and we'll arrange delivery
Quality guarantee and defective products
Our strict quality control maintains a defective rate below 0.2%. During the guarantee period, we replace small quantities with new orders. For defective batches, we repair and resend or discuss recall solutions as needed.
